YSW104 1600W Peak (800W RMS) Y-Series 10" Dual 4-Ohm Subwoofer

Product image 1
1 / 11

YSW104 1600W Peak (800W RMS) Y-Series 10" Dual 4-Ohm Subwoofer

Product Details:

  • 10" Dual 4-ohm Y-Series Subwoofer
  • Power Handling:
    • Peak: 1600 watts
    • RMS: 800 watts
  • 15 mm Xmax
  • Enhanced Pressed Paper Cone

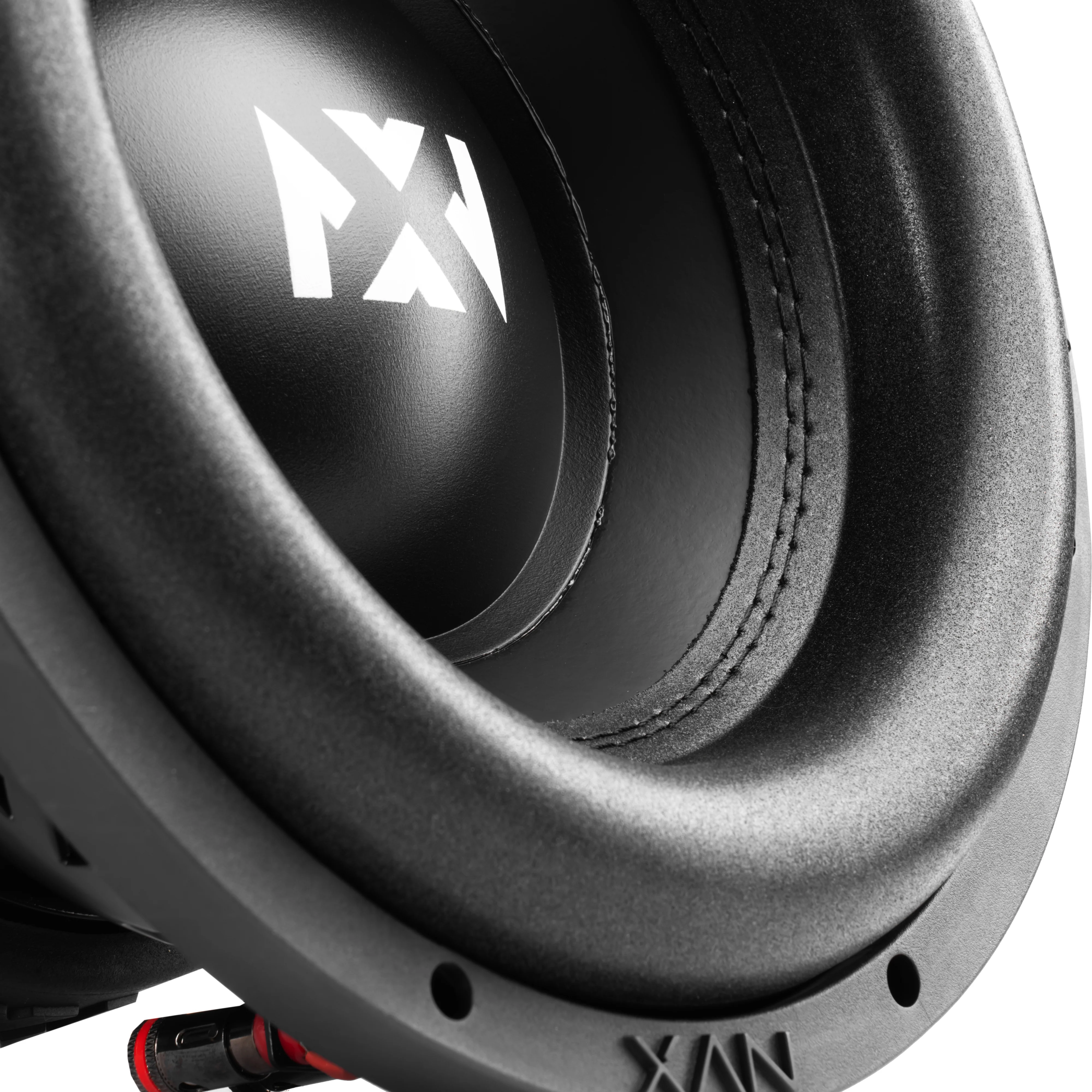

  • Custom High-Roll Foam Surround with Black Nylon Stitching
  • Stamped Steel Vented Basket with NVX Punched Logo
  • 3.0" High Temperature Copper Voice coil with Aluminum Former
  • Progressive Roll Dual-layer Spider with Integrated Tinsel Leads
  • Optimized High-Velocity Pole Vent
  • 116 oz. Double Stacked Ferrite Magnet with Protective Rubber boot
  • Frequency Response: 20 - 200 Hz
  • Resonance Frequency (Fs): 30.68 Hz
  • Sensitivity: 85 dB
  • Recommended sealed box volume: .45 cubic feet
  • Recommended ported box volume: 1.5 cubic feet
  • Top-mount depth: 5.90"
  • Cutout diameter: 8.93"
  • CTA-2031 Compliant
  • 1-year Warranty from the Original Purchase Date

Y-Series Owner’s Manual


      $52.50

      Original: $149.99

      -65%
      YSW104 1600W Peak (800W RMS) Y-Series 10" Dual 4-Ohm Subwoofer—

      $149.99

      $52.50

      Product Information

      Shipping & Returns

      Description

      Product Details:

      • 10" Dual 4-ohm Y-Series Subwoofer
      • Power Handling:
        • Peak: 1600 watts
        • RMS: 800 watts
      • 15 mm Xmax
      • Enhanced Pressed Paper Cone
      • Custom High-Roll Foam Surround with Black Nylon Stitching
      • Stamped Steel Vented Basket with NVX Punched Logo
      • 3.0" High Temperature Copper Voice coil with Aluminum Former
      • Progressive Roll Dual-layer Spider with Integrated Tinsel Leads
      • Optimized High-Velocity Pole Vent
      • 116 oz. Double Stacked Ferrite Magnet with Protective Rubber boot
      • Frequency Response: 20 - 200 Hz
      • Resonance Frequency (Fs): 30.68 Hz
      • Sensitivity: 85 dB
      • Recommended sealed box volume: .45 cubic feet
      • Recommended ported box volume: 1.5 cubic feet
      • Top-mount depth: 5.90"
      • Cutout diameter: 8.93"
      • CTA-2031 Compliant
      • 1-year Warranty from the Original Purchase Date

      Y-Series Owner’s Manual
